Ground Penetrating Radar non-destructive testing
Last-Release：2024-02-21 08:52:53 Font Size：T|T
Ground Penetrating Radar (GPR) non-destructive testing mainly uses transmitting antennas to emit ultra wideband electromagnetic waves for underground detection. Electromagnetic waves reflect when encountering differences in underground media, and the receiving antenna receives the reflected echoes for processing and storage. When electromagnetic waves propagate in a medium, their path, electromagnetic field strength, and electrical properties of the medium through which the waveform passes vary with the geometric shape of the physical interface. Based on the two-way travel time, amplitude, phase, and other information of the received reflected echo, the internal structure is judged.
PROMISING GEOPHYSICS SDN.BHD mainly sells GPR products which can be used to provide exploration services.
The related products of ground penetrating radar include: common ground penetrating radar; multiply channels ground penetrating radar; 3-Darray ground penetrating radar; engineering inspection vehicle; life detection radar; wall penetrating &detection radar; pipeline detection radar; concrete structure s canning radar, etc.
PROMISING GEOPHYSICS SDN.BHD mainly sells GPR products which can be used to provide exploration services.
The related products of ground penetrating radar include: common ground penetrating radar; multiply channels ground penetrating radar; 3-Darray ground penetrating radar; engineering inspection vehicle; life detection radar; wall penetrating &detection radar; pipeline detection radar; concrete structure s canning radar, etc.
The main products are listed as follows:
GER-PRO-10 radar main machine：
GER-PRO-10 is one portable, intelligent, high performance and full digitalize ground penetrating radar main machine, compatible GER whole series antennas, support most of the GPS equipment, stable and reliable complete Chinese collect system which based on Windows system are in accordance with operating habits of field operators, it has advantages at easy to carry, simple operation, better data quality and high collect efficiency, etc, widely applied in tunnel engineering, road engineering, water conservancy engineering, bridge engineering, civil engineering, military and archaeology areas.

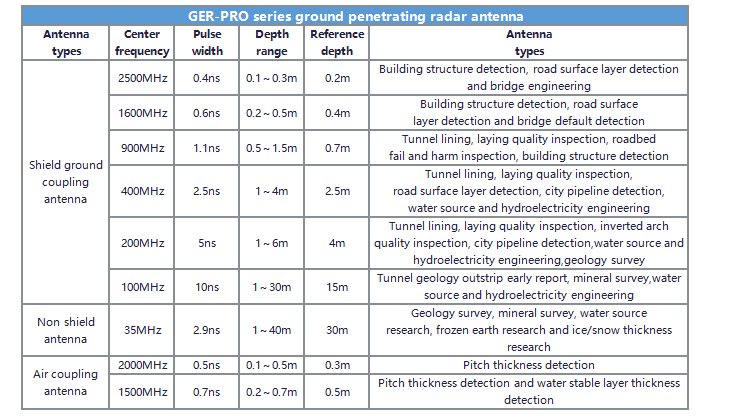

GER-PRO series antenna：
The GER-PRO series antennas have complete models and functions, covering a wide frequency range with a center frequency of 35MHz~2500MHz, which can meet the different needs of users in various detection scenarios.

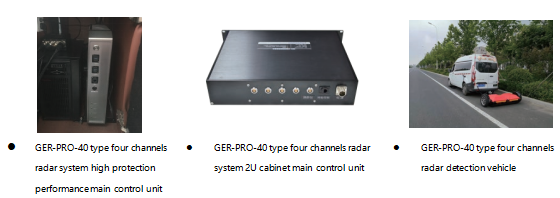

GER-PRO-40 type multiply channels ground penetrating radar system：
GER-PRO-40 type multiply channels ground penetrating radar system aim at the inspection requirements of the related engineering of road, the main control unit adopt parallel design scheme, each detection unit independent working to achieve the best detection performance and technical status. GER-PRO-40 type multiply channels ground penetrating radar system can compatible whole GER series antennas, the antenna center frequency are 35MHz~2500MHz, can be flexibly configured according to the actual detection requirements, maximization meet the actual requirements at engineering inspection and detection.

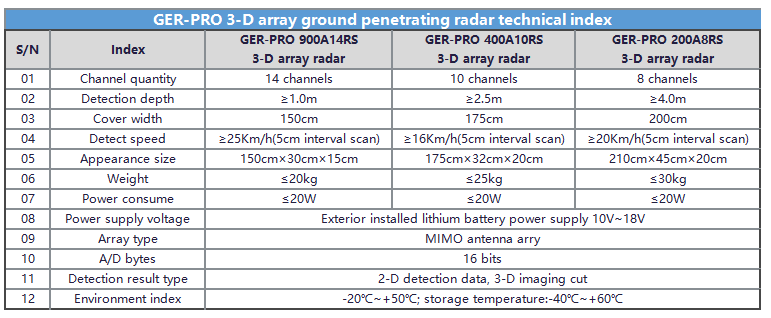

GER-PRO 3-D array ground penetrating radar system：
GER-PRO 3-D array ground penetrating radar system is one high integration array ground penetrating radar 3-D imaging detection system. Adopt main machine, array antenna integration unified design, more convenient and flexible use, anti-vibration design, guarantee the stability and reliable of array radar system use under complex situation. The perfect channel uniformity guarantee the imaging effect of detection, it has the advantages at convenient use, simple data process, easy image judgement and easy to fix position, able to applied in the imaging detection like airport inspection, tunnel engineering, road engineering, water source engineering, bridge engineering, civil engineering, military and archaeology and other areas.
For more detailed information, please contact the staff of PROMISING GEOPHYSICS SDN.BHD company.
